The factory produce heliostats flat solar mirror for more than 5years,which is used for gathering reflecting solar energy in a system being powered by energy of solar,the solar mirror is used for CSP clean energy,up to real 93.7% visible light. for solar tower systems.trough, sterling solar power plant. the purprose of the solar mirror is to achieve a substantially concentrated reflection factor for solar energy systems.

Mainly includes: Heliostats/high reflectance solar mirror/solar reflective mirror/CSP solar mirror/

The solar mirror includes glass substrate,a reflective layer for reflecting the solar energy, and an interference layer.

Specifications:

Thickness/size

1.1mm:1245*1092mm, 1245*734mm

3mm:1830*2440mm, 2134*3300mm

3.2mm:1830*2440mm, 2134*3300mm, 2250 x 3210mm

4mm:1830*2440mm, 2134*3300mm, 2250 x 3210mm

Customer size available as per request

1, Tower system, flat solar reflector, flat mirrors
2, Stirling system, cold curved, 1.1mm high visible light reflectivity, dish mirrors with trapeziod shape.tirling system with diameter about 12.5meter and 25KW output per unit.

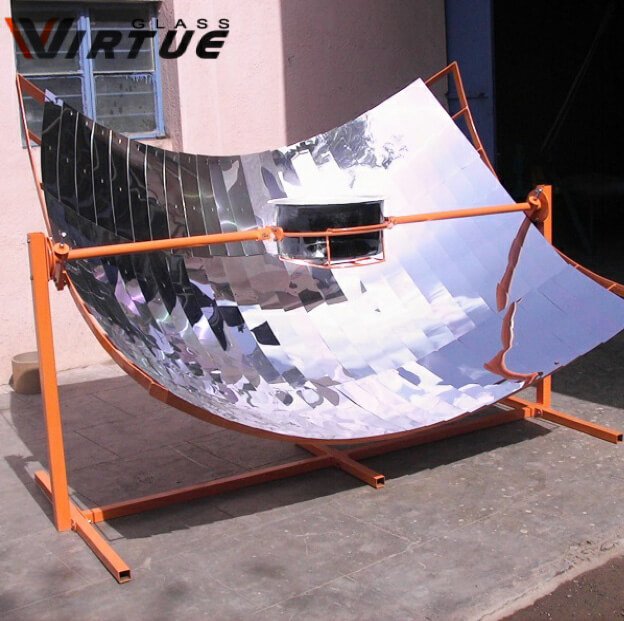

3, Parobolic trough reflectors, for trough system, curved mirrors,
flat mrirors  and parabolic mirrors

Features:
1) made from low iron extra clear glass, the solar mirror visible light reflectivity> = 93%
2) silver coated, enhanced silver adhesion processing
3) Water-resistance,scratch-resistance, Anti-UV,outdoor application, long shelf time up to 25 years with UV resistant coating system.
4) customer size available
5) edge grinded before mirror coating.

Applications: Used for CSP units to collect sunlight.

1) Tower solar plant
2) Sterling solar plant
3) Trough solar plant
