Use VGC Solar Photovoltaic Glass, Experience Efficiency and Saving Cost with Solar Energy Glass| Manufacturer China

VGC is Solar photovoltaic Glass Manufacturer, Solar Energy Glass Exporter for more than 15 years.The main Thickness:1.1mm,1.3mm,1.5mm,1.6mm,2mm,2.5mm,3.2mm,4.0mm for PV Solar Panels and BIPV Solar Glass Panels.

2023-03-29T02:18:59+00:00
extra-clear-pattern-solar-glass1-768x768
Tempered Anti Reflective ARC Photovoltaic Glass Prismatic Solar Power Glass Low Iron Patterned Solar Glass Thick 2mm-4mm

Tempered Anti Reflective ARC Photovoltaic Glass Prismatic Solar Power Glass Low Iron Patterned Solar Glass Thick 2mm-4mm

Tempered Anti Reflective ARC Photovoltaic Glass Prismatic Solar Power Glass Low Iron Patterned Solar Glass Thick 2mm-4mm

What is Low Iron Patterned Solar Glass?  VGC is Low Iron Patterned Solar Glass Manufacturer ...

Types of Solar Photovoltaic Glass(Solar Energy Glass)

VGC is Solar photovoltaic Glass Manufacturer, Solar Energy Glass Exporter for more than 15 years.The main Thickness: 1.1mm,1.3mm,1.5mm,1.6mm,2mm,2.5mm,3.2mm,4.0mm for PV Solar Panels and BIPV Solar Glass Panels.The substrates of VGC Solar Photovoltaic glass includes 4 types:

FLOAT GLASS SOLAR GLASS is the substrate of solar back glass, it is further processed (edge grinding, hole drilling and tempering) . Compared with conventional back sheet (TPT), back glass has an excellent durability performance. By using advanced equipment, we can provide back glass with highest process precision and big capacity.

LOW IRON EXTRA CLEAR GLASS is an ultra-transparent subway glass with a light transmittance of over 91%. It has crystal clear and elegant characteristics. It is called the”crystal prince”of the glass family. The ultra-white glass has good machine ability and superiority. Physical, mechanical and optical properties.

LOW IRON PATTERN GLASS is formed with a diamond pattern on one face and a smooth pattern on another, and then is further treated by tempering process. It is mainly used for the cover of photovoitaic modules or flat solar water collectors and also used as greenhouse Glass.

Solar low iron pattern glass has its unique recipe and special pattern, which ensures highest solar transmission by greatly reducing light reflection and absorbtion, and therefore increases photoelectric conversion efficiency or solar-thermal conversion efficiency.
Thickness 3.5mm and 4.0mm mainly.

solar photovoltaic glass

solar photovoltaic glass

 Specifications of Solar Photovoltaic Glass

Product PV Solar Panel Glass
Colors clear, extra clear, texured
Thickness 1.1mm,1.3mm,1.5mm,1.6mm,2mm,2.5mm,3.2mm,4.0mm1mm,1.3mm,1.5mm,1.6mm,2mm,2.5mm,3.2mm,4.0mm
Sizes Max.Size:2250*3500mm(annealed)/1219*1930mm(tempered), Customized Sizes
Edges Simple grinding edges
Substrate Glass types Clear Float Glass, Low-Iron Extra Clear Glass, Low Iron Pattern Glass
Texture solar Glass

Solar Glass Applications

  • Extra clear greenhouse solar glass
  • Solar PV Glass panels
  • Photovoltaic glass
  • Tempered Glass For Greenhouse

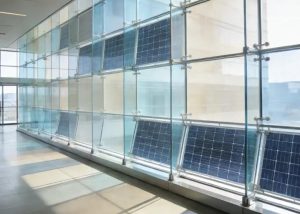

  • Ultra Thin Prismatic BIPV Solar Glass

Glass for Solar Panels

Clear Series:
Clear Float Tempered
Low Iron Float Tempered
Clear Float Tempered + 2AR
Low Iron Float Tempered + 2AR		 Extra clear solar glass

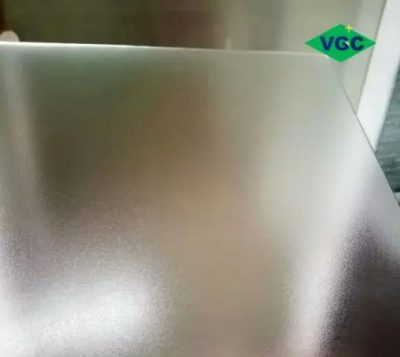

Diffused Series:
Clear Prismatic Tempered
Low Iron Prismatic Tempered
Clear Prismatic Tempered + 2AR
Low Iron Prismatic Tempered + 2AR		 solar panel glass price

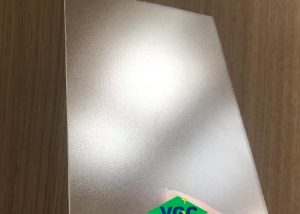

Textured Series:
Clear Matt Tempered
Low Iron Matt Tempered
Clear Matt Tempered + 2AR
Low Iron Matt Tempered + 2AR		 Photovoltaic glass
Textured Series:
Clear CustomTex Tempered
Low Iron CustomTex Tempered
Clear CustomTex Tempered + 2AR
Low Iron CustomTex Tempered + 2AR		 China low iron patterned glass

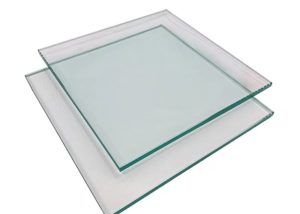

Best Greenhouse Glass- Extra Clear Pattern Glass

solar glass for greenhouse

Solar PV Glass(Photovoltaic Glass Solutions)

tempered solar PV glass

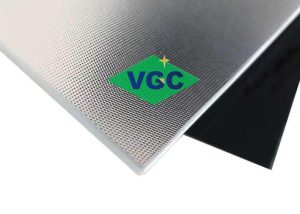

Solar Panel Glass Price

CLEAR FLOAT GLASS $2-$4/sqm
SOLAR PANEL COVER GLASS $2-$6/sqm
SOLAR PANEL BASE GLASS $2-$6/sqm
SOLAR PANEL BOTTOM GLASS $2-$5/sqm
EXTRA CLEAR FLOAT GLASS $2-$6/sqm
EXTRA CLEAR TEXTURED GLASS $2-$6/sqm

Contact US For Exact Good Price Solar Panel Glass

Email: sales.virtueglass@aliyun.com

Mob: 86-15064221779

Wechat: xinyixiongdi2017

Quality Control Of VGC Solar Glass

VIRTUE GLASS has always put product quality in the first place as product quality is the life of an enterprise. We try to implement the sense of quality to the heart of every employee,into the production of each link and details, strive for excellence. We take customer’s satisfaction as the main criterion for the assessment of all the production activities, customer demand is always our pursuit.
