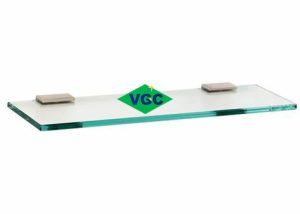

Tempered Glass Shelf

With over 15 years of expertise, VGC is a trusted manufacturer of tempered glass shelves and floating glass shelves. We specialize in providing customizable glass shelving solutions for a wide range of applications, including:

• Office Shelving

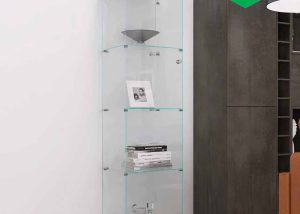

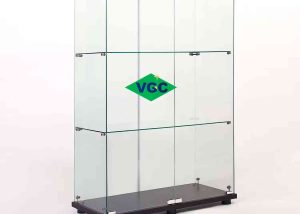

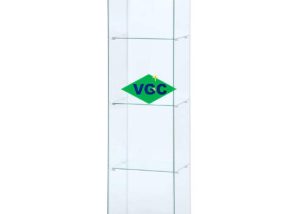

• Glass Display Cabinets
• Glass Wine Showcases

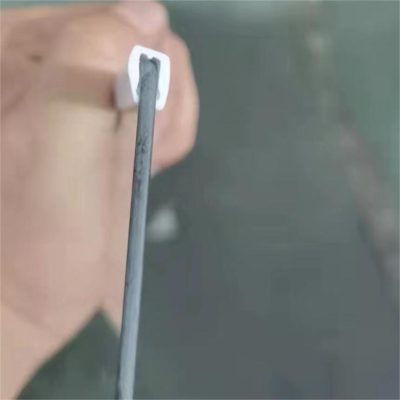

• Fridge Glass Shelves
• Bathroom Corner Shelves
• Bookcase Shelves
• Cabinet Display Tempered Glass Shelves
• Wall and Furniture Glass Shelves

Our shelves are designed to be both functional and stylish, offering durability and versatility to meet various storage and display needs. Whether you’re looking for sleek shelving for your office, a sophisticated wine showcase, or a reliable glass shelf for your bathroom, VGC has the right solution for you.

The production of a tempered glass shelf involves several key processes that ensure the glass is strong, durable, and ready for its intended use. Below is an overview of the main production processes for creating a tempered glass shelf:

---

1. Glass Cutting

• Material Selection: High-quality float glass is selected as the raw material. Float glass is clear, smooth, and consistent, making it ideal for shelving.
• Cutting to Size: The glass is cut into precise dimensions according to the customized specifications provided by the customer. CNC cutting machines or laser cutting are typically used to achieve accurate and clean cuts.

---

2. Edge Grinding & Polishing

• Edge Grinding: After the glass is cut, the edges are smoothed and shaped using grinding wheels or edge polishers. This is an important step, as sharp edges can cause injury or breakage.
• Polishing: The edges are polished to remove any roughness and achieve a smooth, glossy finish. Options include flat, beveled, or radius edges depending on the design requirements.
• Beveling: For a more decorative edge, the glass can be beveled at a specific angle, providing a sleek and elegant look.

---

3. Washing & Cleaning

• Cleaning Process: The glass is thoroughly washed using an industrial glass washing machine. This removes any dirt, oils, or residues left over from cutting or grinding.
• Drying: After washing, the glass is carefully dried to avoid any water spots or streaks, which can affect the appearance of the finished product.

---

4. Tempering (Heat Treatment)

• Heating: The glass is placed into a tempering furnace, where it is heated to around 650°C (1200°F). The glass is evenly heated to a specific temperature to ensure uniformity.
• Cooling (Quenching): Once the glass reaches the desired temperature, it is rapidly cooled by blowing cool air across its surface. This process, known as quenching, causes the outer surface of the glass to cool and harden faster than the inner part, creating internal tension. This results in a stronger and more impact-resistant glass.
• Tempered Strength: The tempering process increases the strength of the glass by approximately 4 to 5 times compared to non-tempered glass. It also ensures that if the glass breaks, it shatters into small, blunt pieces rather than sharp shards, which makes it safer.

---

5. Customization & Additional Treatments

• Etching or Printing: If required, designs or logos can be etched onto the glass surface using sandblasting or laser etching. Printing with custom patterns or artwork can also be done for decorative purposes.
• Coating: Glass can be coated with an anti-scratch, anti-glare, or anti-fog layer to enhance durability and performance, especially for use in kitchens or bathrooms.
• Drilling Holes: If the shelf design requires mounting holes for brackets or supports, the glass is carefully drilled using a diamond drill bit to avoid cracking. This step requires precise control to maintain the integrity of the glass.

---

6. Final Inspection & Quality Control

• Inspection: After the glass is tempered and customized, it undergoes a thorough inspection. Quality control checks include:
  • Visual inspection for any defects, such as scratches, bubbles, or cracks.
  • Measurement checks to ensure the glass is the correct size and thickness as per the order.
  • Strength testing to ensure the glass meets the required standards for load-bearing and durability.
• Cleaning: The glass is cleaned one final time to remove any dust or marks before packaging.

---

7. Packaging & Shipping

• Packaging: The tempered glass shelves are carefully packaged using protective materials like foam, bubble wrap,cardboard or plywood cases to prevent damage during transportation.
• Shipping: Once packaged, the glass shelves are ready for shipment. VGC can ship to various international locations, ensuring the product arrives safely and on time.

---

Additional Customization Options in Production:

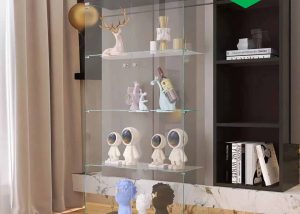

• LED Backlighting: Some shelves may be equipped with integrated LED lights for added functionality and aesthetics.
• Special Coatings: For added performance, coatings like anti-glare, UV protection, or frosted glass can be applied during the manufacturing process.

1. Enhanced Durability and Strength

   • Tempered glass is heat-treated to withstand high pressure and impact, making it much stronger than regular glass. It is designed to bear heavy loads without bending or breaking.

2. Safety First

   • In the rare event that tempered glass does break, it shatters into small, round-edged pieces rather than sharp shards, reducing the risk of injury. This makes it an ideal choice for homes with children, office spaces, and public environments.

3. Stylish and Elegant Design

   • Tempered glass shelves offer a sleek, modern aesthetic that complements both contemporary and traditional décor. Their clean, transparent look allows other elements of the room to stand out, making it a popular choice for stylish home and office environments.

4. Versatility in Applications

   • Tempered glass shelves can be used in a variety of settings including office shelving, bathroom corner shelves, fridge shelves, bookcases, glass display cabinets, and wine showcases. Their adaptability allows them to enhance any space while providing functional storage.

5. Easy Maintenance

   • Tempered glass is resistant to stains, dust, and grime, making it easy to clean and maintain. A simple wipe-down with a glass cleaner or microfiber cloth keeps the shelves looking pristine and spotless.

6. Resistant to Temperature Changes

   • Because tempered glass is heat-treated, it can withstand extreme temperature fluctuations without cracking or warping. This makes it ideal for use in kitchens, bathrooms, or any space exposed to varying temperatures.

7. Long-Term Reliability

   • Unlike other materials that may degrade over time, tempered glass retains its strength and visual appeal for years. It’s a cost-effective, long-lasting solution for shelves and storage units.

8. Supports a Modern Minimalist Look

   • With its transparent design, tempered glass shelves create an open, airy feel, making them perfect for minimalist or open-concept interiors. They blend seamlessly into the background while still offering practical storage and display options.

9. Eco-Friendly

   • Glass is a 100% recyclable material, making tempered glass shelves an environmentally friendly choice. The long lifespan of tempered glass also means less waste over time.

---

These advantages highlight the strength, safety, and aesthetic benefits of tempered glass shelves, making them a popular and reliable option for various applications. Let me know if you need further elaboration or additional points!

• Floating glass shelves
• Glass Display showcases
• Glass corner shelf
• Tempered glass shelf
• Glass bathroom shelf
• Glass shelf for living room
• Glass display shelf
• Glass bookshelf
• Glass kitchen shelf
• Clear glass shelf
• Modern Glass shelf with lights

1.Clear Tempered Glass Shelf
2.Tinted Tempered Glass Shelf

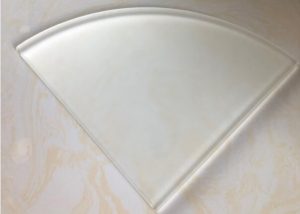

3.Frosted Tempered Glass Shelf
5. Furniture Tempered Glass Shelf

6.Display Tempered Glass Shelf

7. Wall Tempered Glass Shelf
